Camera Speed Reference

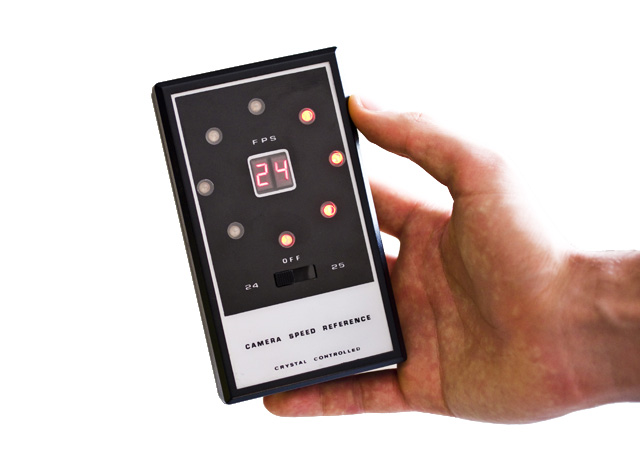

CAMERA SPEED REFERENCE is a sophisticated, yet rugged instrument, that has been designed as bench tool in Camera Service Shops, Rental Houses or as a tool during shooting, every time a precise speed reference is required to check the camera frame rate, either crystal controlled or not.
It delivers exact crystal controlled speed of 24 or 25 fps, switch selectable.
48, 96, 50 and 100 fps can checked too, by selecting multiple higher speeds.
Camera speed can be checked through the viewfinder, if the camera is reflex, or directly through the gate looking at CAMERA SPEED REFERENCE.
Due to stroboscopic effect, the LEDs will be stationary if camera speed is correct, according to frame rate selected on the instrument.
CW or CCW apparent movement of the LEDs will denote a camera that is not correctly adjusted.
